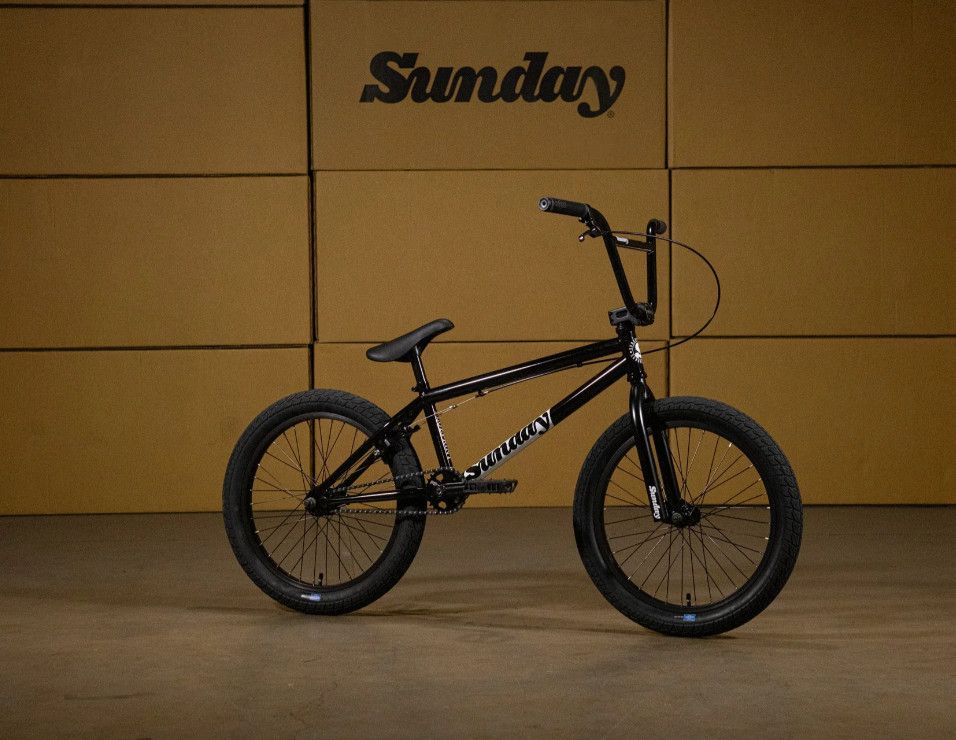

Sunday Blueprint BMX Bike

Frame: Sunday Blueprint, 20.5" top tube, integrated 1-1/8" head tube

Fork: Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load

Handlebar: Sunday, 2-piece

Stem: Sunday Freeze front load, 48mm

Headset: FSA integrated, 1-1/8"

Alloy Cap: FSA aluminum cap

Brake Lever: Aluminum, U-brake compatible

Brakes: Odyssey Springfield U-brake

Brake Cable: Odyssey Quik Slic

Grips: Sunday Cornerstone

Seat: Sunday Badge, seat and post combo

Seat Post: Integrated

Seat Clamp: Integrated

Sprocket: Sunday Sabretooth v2, 25T, steel

Cranks: 160mm, 3-piece, chromoly

BB Parts: Loose-ball, American, 19mm

Pedals: FPD platform, plastic

Rims: P-7X aluminum, 20", 36H

Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8" axle

Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver

Spokes: 14g steel, black

Tires: Sunday OEM, 20 x 2.4" (F & R)

Chain: KMC S1

Approx. Weight: 26lbs (with brakes)

Frame Geometry

Top Tube Length: 20.5"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 8.75"

Handlebar Geometry

Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
