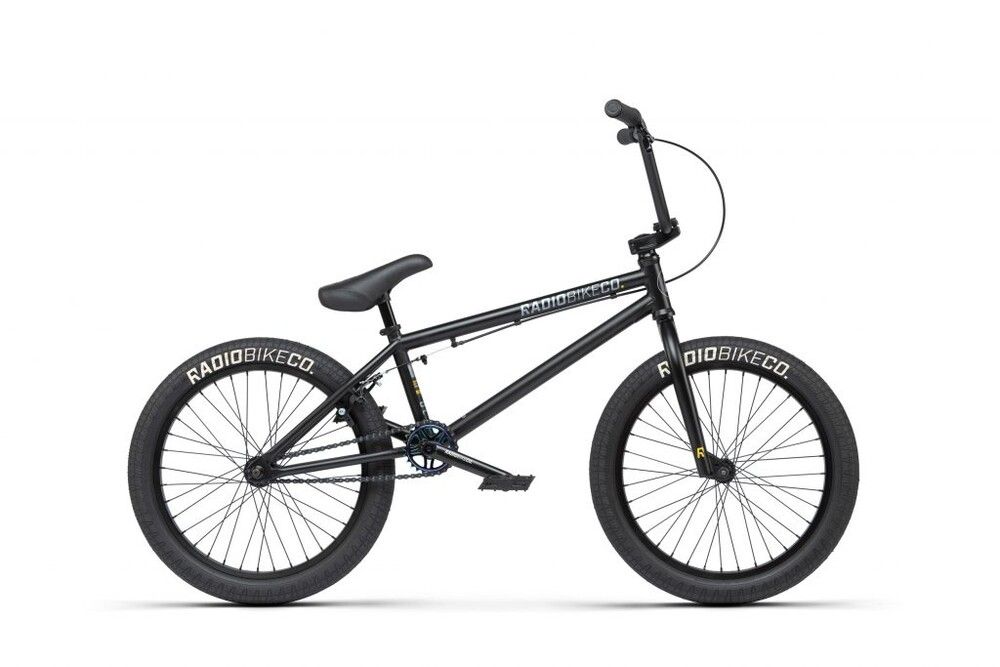

Radio Evol BMX Bike

FRAME: RADIO "EVOL" frame, crmo top tube, 1020 hi-ten

FORK: RADIO "AM" fork, 1020 hi-ten, crmo steerer, tapered legs

BARS: RADIO "AM 20" bar, 1020 hi-ten

GRIPS: SALT "EX" grips, flangless, 155mm

STEM: RADIO "AM" topload stem, 50mm reach

HEADSET: SALT "PRO" integrated headset, sealed bearing

GYRO: holes for removable gyro tabs

LEVER: RADIO "AM" brake lever, alloy, rear

BRAKES: RADIO "AM" u-brake, alloy, rear

CRANKS: RADIO "ROOKIE" 3pc crank, tubular, crmo, 165mm, 8 spline

BB : RADIO "MID" bb set, press fit, sealed bearing

PEDALS: RADIO "PRO" pedals, nylon/fiberglass

CHAIN: SALT "AM" chain, WZ1 type

SPROCKET: RADIO "VISION" sprocket, steel, 25t

DRIVER: cassette driver, 9t, lb

FRONT HUB: RADIO "ROOKIE" hub, steel, loose ball, 3/8"s, 36h

REAR HUB: RADIO "AM" cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h

FRONT RIM: RADIO "ROOKIE" rim, single wall

REAR RIM: RADIO "ROOKIE" rim, single wall

SEAT: RADIO "CENTURY" combo seat, mid padded

SEAT POST: -

SEAT CLAMP: RADIO "SLIM" seat clamp, alloy

TIRES: RADIO "ROOKIE" tires, 2.3", front & rear

PEGS: -

WEIGHT: 12.25kg / 27.02lbs

FRAME GEOMETRY:

TOP TUBE LENGTH: 20.3"

CHAIN STAY LENGTH: 13.2"

HEAD TUBE ANGLE: 75°

SEAT TUBE ANGLE: 71.5°

BOTTOM BRACKET HEIGHT: 11.75"

STANDOVER HEIGHT: 8.25"

HANDLEBAR GEOMETRY:

RISE: 8.8"

WIDTH: 29"

BACKSWEEP: 11°

UPSWEEP: 2°
