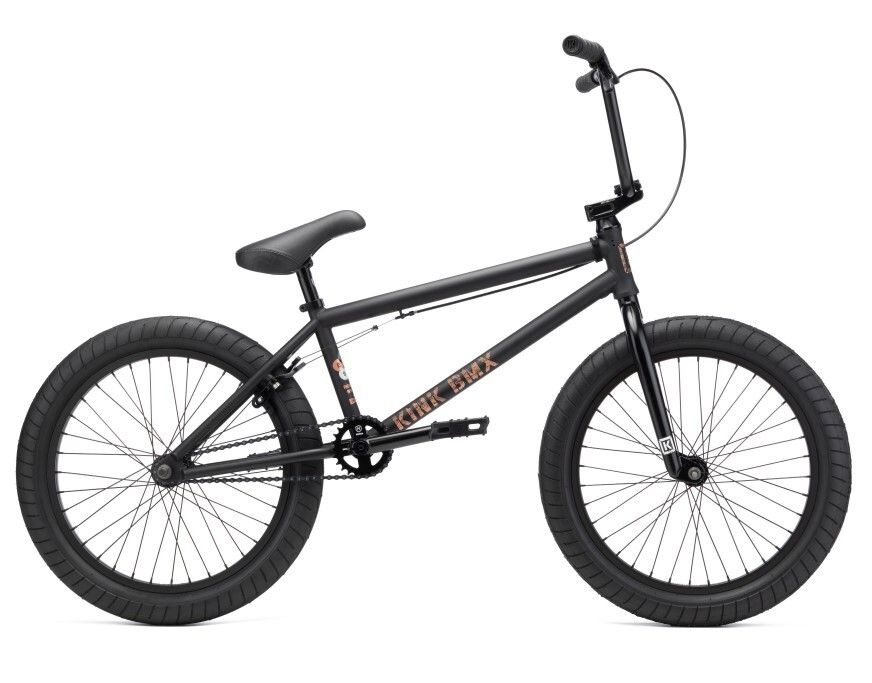

Kink Gap Bmx Bikes

Geometry:

Toptube: 20.5"

Chainstay: 13.25"

Headtube: 75°

Seattube: 71°

Standover: 9"

BB Height: 11.6"

Specifications

Frame : Kink Gap Frame 4130 Chromoly HT/TT/DT

Fork: Kink Stryker Fork 4130 Chromoly Steerer Tapered Fork Legs 32mm Offset

Handlebars: Kink T900 Bar 9" 100% 4130 Chromoly

Grips: Kink Ace Grips

Bar Ends: Kink Thrust Bar Ends

Stem: Kink Bold HRD 50mm Stem

Headset: Mission Sealed Integrated Headset

Brake Lever: Mission Token Lever

Brake Cable: Mission L3 Linear Cable

Brakes: Mission Cease V2 Brakes

Brake Mounts: Welded Mounts

Cranks: Kink Ridge 3pc Tubular Chromoly 170mm - 8 Spline Cranks

BB: Sealed Mid 19mm BB

Pedals: Kink Hemlock Pedals

Chain: Mission 410 Chain

Sprocket: Mission Breach 25T Sprocket

Seat: Kink Plymouth/Bomber Stealth Seat

Seatpost: Mission Stealth Post

Seat Clamp: Mission Slim Clamp

Front Hub: Mission Covert Unsealed 3/8" Axle Hub

Rear Hub: Mission Engage Sealed Cassette 14mm Hub

Driver: Sealed 9T Driver

Front Rim: Mission X7 Rim

Rear Rim: Mission X7 Rim

Front Tire: Kink Sever 2.4" Tire

Rear Tire: Kink Sever 2.4" Tire

Pegs: None

Gyro Tabs: Tapped For Tabs
